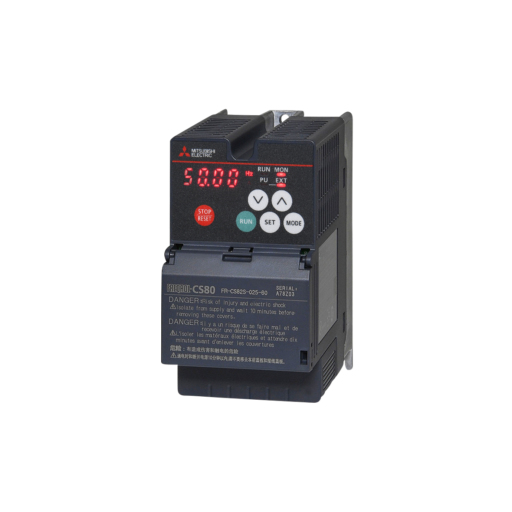

FR-CS-82S-025-60 Mitsubishi VFD

FR-CS-82S-025-60 Mitsubishi VFD Specification

Shape
Rectangular

Efficiency
>=95%

Feature
Compact Size, Easy Installation, Built-in EMC Filter

Connector Type
Screw Type Terminal Block

Mounting Type
Panel Mount

Overheating Protection
Built-in Thermal Protection

Surface Finish
Matte

Operating Temperature
-10C to +50C

IP Rating
IP20

Humidity %
5% to 95% (non-condensing)

Insulation Material
High Grade Plastic

Power Factor
>=0.96 (with DC Reactor)

Product Type
Variable Frequency Drive (VFD)

Application
Industrial Motor Speed Control, HVAC, Pumps, Fans

Protection Level
Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Optimized for Energy Saving Operation

Output Type
Three Phase Output

Color
Grey

Dimension (L*W*H)
150 x 100 x 135 mm (approx.)

Weight
1.0 kg (approx.)

Input Voltage
380-480V AC, 3 Phase

Phase
Three Phase

Size
025 Suitable for 2.5kW Motors

Connection Type
Screw Terminal

Material
Plastic & Metal Housing

Braking Function
DC Injection and Optional Braking Resistor Support

Display Type
7-Segment LED

Starting Torque
150% / 1 Hz

Series
FR-CS80

Cooling Method
Forced Air Cooling (Fan)

Enclosure
Open Type

Output Current
5.5A

Control System
V/f Control, Vector Control (without PG)

Model Number
FR-CS-82S-025-60

Noise Level
<70 dB

Frequency Range
0.2Hz to 400Hz

Storage Temperature
-20°C to +65°C

Alarm Functions
Overcurrent, Overvoltage, Undervoltage, Overheat, Stall Prevention

Communication Interface
RS-485 (MODBUS RTU compatible)

Motor Compatibility
Induction Motors (IM), Permanent Magnet Motors (PM)

Built-in EMC Filter
Yes

Input Phase
Three Phase

About FR-CS-82S-025-60 Mitsubishi VFD

Products

FR-CS82S-025-60

FR-CS80

FR-CS80

Inverter; Rated Power: 0,4kW; 1x200-240V; Rated Current: 2,5A; IP20

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-Inverter: Inverter

Series	FR-CS80 SERIES
Type	FR-CS82 COMPACT INVERTER
Minimum Rated Voltage (V)	200
Min. Permissible Voltage (V)	170
Maximum Rated Voltage (V)	240
Max. Permissible Voltage (V)	264
Current Type	AC
Phases	1
Rated Output Current ND (A)	2,5
Rated Motor Capacity ND (kW)	0,4
Control Method	ADVANCED MAGN. FLUX VEC. CTRL
Motor Type	INDUCTION MOTOR
Integrated EMC Filter	NO
Safe Torque Off (STO)	NO
Regenerative (4Q)	NO
Display	FR-LU08
PLC Function	NO
Integrated Analogue Outputs	0
RS-485	1
Power Loss ND (W)	25
Frequency Range (Hz)	0,2400
Integrated DC Choke	NO
Display Type	4 DIGITS LED
Integrated Digital Inputs	5
Digital Outputs (Transistor)	1
Digital Outputs (Relay)	0
Integrated Analogue Inputs	2
IO Type of Terminal Block	SPRING CLAMP
Expandable	YES
USB	NO
Ethernet Port	NO
Built-In Network	MODBUS-RTU
Leakage Current (mA)	1
Protection Class	IP20

Product Dimensions & Weight

Width (mm)	68
Height (mm)	128
Depth (mm)	118
Weight (kg)	0,6

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
UKCA	COMPLIANT

Reliable and Versatile Motor Control

The FR-CS-82S-025-60 Mitsubishi VFD delivers superior control for both induction and permanent magnet motors. Its advanced V/f and sensorless vector control allow precise speed management, supporting a wide frequency range and strong starting torque. Suitable for a variety of applications, this VFD ensures optimal motor performance while protecting against common electrical faults.

Compact Design, Easy Installation

Engineered with a compact footprint and an efficient forced air cooling system, the FR-CS-82S-025-60 is ideal for space-constrained installations. The clear 7-segment LED display and screw terminal block facilitate straightforward setup and monitoring, while the matte-finished, high-grade enclosure ensures durability and quick panel mounting.

Integrated Safety and Communication

Equipped with built-in EMC filter, multiple alarm functions, and robust short-circuit, overload, and overheat protection, the FR-CS-82S-025-60 enhances both safety and reliability. The RS-485 interface provides seamless integration into industrial systems, supporting MODBUS RTU protocol for efficient data exchange and remote operation.
