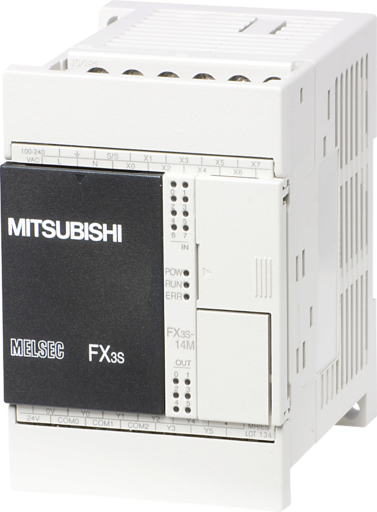

FX3S-14MT/ES Mitsubishi plc

FX3S-14MT/ES Mitsubishi plc Specification

Resolution
Digital discrete I/O

IP Rating
IP20

Charging Voltage
N/A - DC powered

Power Supply
24V DC powered

Features
Compact size; fast processing speed; easy-to-use programming; reliable operation

Components
CPU unit, input/output terminals, power supply terminal

Operating Temperature
0C to 55C

Input
8 digital inputs

Display Type
LED indicators for status

Usage
Industrial Automation Control

Thermal Conductivity
Standard for PLC plastic housing

Processor Speed
High-speed processing, 0.21s/step basic instruction

Interface
Mini USB port for programming, expansion ports

Power Source
External DC supply

Response Time
Typically <0.5ms

Output
6 transistor (sink) outputs

Sensors Specification
Supports connection to standard digital sensors

Product Type
PLC

Application
Machine automation, process control, packaging equipment

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
Compact

Dimension (L*W*H)
90 mm 86 mm 55 mm

Function
Programmable Logic Controller (PLC)

Color
Grey

Weight
220 g

Capacity
Up to 2,000 program steps

Thickness
Standard compact body

Current Rating
Approx. 0.8A max. (output)

Frequency
DC operation

Insulation Resistance
Over 5 M (500V DC)

Power Consumption
5.5W (typical)

Humidity
5% to 95% RH, non-condensing

Mounting Type
DIN rail or panel mount

Storage Temperature
-25C to 70C

Vibration Resistance
10-55 Hz, 10 m/s

Programming Language
MELSEC GX Works2/GX Developer

Expansion Capability
Support FX3S/FX3G/FX3U expansion modules

Memory Type
Built-in EEPROM, no backup battery required

Shock Resistance
147 m/s (15 ms)

Isolation Voltage
500V AC RMS (inputs/outputs to ground)

Digital Inputs Voltage Range
15-30V DC

Output Type
Transistor (sink)

About FX3S-14MT/ES Mitsubishi plc

Products

FX3S-14MT/ES

PLC main unit

FX3S Base Unit AC100-240V;8 Inputs DC24V;6 Transistor Outputs (sink)

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-COM PLC: Main Unit

Type	FX3S
Power Supply (V)	100-240
Current Type	AC
Program Memory	16K STEPS
Program Memory Unit	EEPROM
Integrated Digital Inputs	8
Integrated Digital Outputs	6
Output Type	TRANSISTOR
Output Logic	SINK
Local I/O Points	30
Local + Remote I/O Points	30
Expandable	NO
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	18
Buffer Battery	NO
Protection Class	IP10
Min. Ambient Temperature (C)	0
Max. Ambient Temperature (C)	55
Series	MELSEC-F SERIES

Product Dimensions & Weight

Width (mm)	60
Height (mm)	90
Depth (mm)	75
Weight (kg)	0,3

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,LR,NK
UKCA	COMPLIANT

Exceptional Compact Control

The FX3S-14MT/ES PLC delivers industrial-grade control in a space-saving compact body, measuring only 90 x 86 x 55 mm and weighing 220 grams. Its design makes it suitable for installations where panel or DIN rail mounting is essential and space is at a premium, while maintaining full performance and durability.

Fast and Reliable Automation

Engineered for swift response, this PLC processes instructions at just 0.21s per basic command, supporting real-time machine control. Its transistor outputs offer fast switching, and robust isolation and vibration resistance ensure uninterrupted operation even in demanding industrial settings.

Flexible Programming and Expansion

Compatible with both MELSEC GX Works2 and GX Developer software, the FX3S-14MT/ES makes programming intuitive and efficient. Expansion ports support additional I/O modules from the FX3S/FX3G/FX3U series, allowing your automation projects to grow seamlessly with your needs.

FAQ's of FX3S-14MT/ES Mitsubishi plc:

Q: How can I program the FX3S-14MT/ES Mitsubishi PLC?

A: You can program the FX3S-14MT/ES PLC using MELSEC GX Works2 or GX Developer software. The device connects to your computer via a mini USB port, offering a straightforward programming experience for ladder logic and other automation routines.

Q: What are the main benefits of using built-in EEPROM memory in this PLC?

A: The built-in EEPROM memory retains your programmed logic without the need for a backup battery, ensuring your data is safe, simplifying maintenance, and making the controller more reliable in demanding industrial applications.

Q: When is it appropriate to expand the FX3S-14MT/ES PLC, and what modules are supported?

A: Expansion is recommended when your application requires additional input, output, or specific function modules. The FX3S-14MT/ES supports FX3S, FX3G, and FX3U expansion modules, allowing you to scale I/O and functionality as your automation needs grow.

Q: Where can the FX3S-14MT/ES be mounted within an industrial environment?

A: This PLC is designed for flexible installation on either DIN rails or directly onto panels, enabling integration into various control cabinets or machine enclosures. Its IP20 rating and sturdy build ensure suitable installation in protected environments.

Q: What is the process for connecting digital sensors to the PLC's digital inputs?

A: Simply connect standard digital sensors operating at 15-30V DC to the eight digital inputs, observing proper wiring and insulation. The discrete digital resolution ensures precise detection and control for your automation setup.

Q: How does the FX3S-14MT/ES ensure operational reliability in tough industrial conditions?

A: The PLC features solid vibration and shock resistance, a wide operating and storage temperature range (-25C to 70C), over 5 M insulation resistance, and high isolation voltage (500V AC RMS), contributing to robust and dependable performance.
