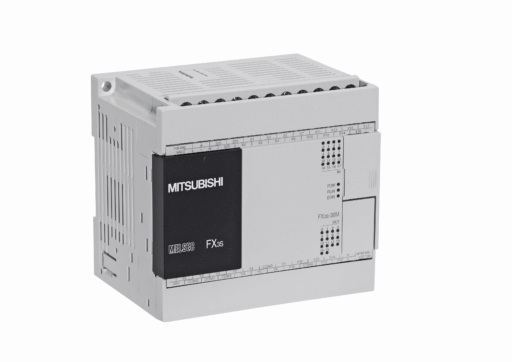

FX3S-30MT/ES-2AD Mitsubishi PLC

FX3S-30MT/ES-2AD Mitsubishi PLC Specification

Components
Main Unit, Expansion Option

Features
Small footprint, Integrated analog input, Reliable performance

Output
14 Transistor Outputs

Display Type
LED Indicator

Resolution
Standard Digital

Response Time
Fast input response

Operating Temperature
0C to 55C

Power Supply
AC Powered

Usage
Industrial Automation, Control Systems

Power Source
AC

IP Rating
IP10

Sensors Specification
Compatible with a wide range of industrial sensors

Interface
RS-485, Expansion Ports

Processor Speed
Basic, High-speed processing

Input
16 Digital Inputs

Product Type
Mitsubishi PLC (FX3S-30MT/ES-2AD)

Application
Factory, Industrial, Automation Control

Rated Voltage
100-240V AC

Supply Voltage
100-240V AC

Size
Compact

Dimension (L*W*H)
150mm x 86mm x 49.5mm

Function
Programmable Logic Controller (PLC)

Color
Grey

Weight
Approx. 0.5 kg

Thickness
Standard, Compact Body

Current Rating
24V DC (input signal), Max 2A per output

Capacity
Expandable up to 30 I/O

Frequency
50/60 Hz

Vibration Resistance
10-57Hz, 0.075mm amplitude

Humidity Tolerance
5% to 95% RH (non-condensing)

Analog Input Channels
2 channels (Built-in 2AD, 12-bit resolution)

Shock Resistance
15G, 11ms duration

Digital Output Type
Transistor (sourcing type)

Max Power Consumption
25W

Mounting Type
DIN rail or panel mounting

Insulation Resistance
Over 5 M (500V DC)

Programming Software
GX Works2, GX Developer support

Storage Temperature
-25C to +75C

Communication
RS-485 communication port

Pulse Output
Supports high-speed pulse output for stepper motor control

Backup
EEPROM memory backup for program retention

About FX3S-30MT/ES-2AD Mitsubishi PLC

Products

FX3S-30MT/ES-2AD

PLC main unit

FX3S Base Unit AC100-240V;16 Inputs DC24V;14 Transistor Outputs(sink);2xAnalog

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-COM PLC: Main Unit

Type	FX3S
Power Supply (V)	100-240
Current Type	AC
Program Memory	16K STEPS
Program Memory Unit	EEPROM
Integrated Digital Inputs	16
Integrated Digital Outputs	14
Integrated Analogue Inputs	2
Output Type	TRANSISTOR
Output Logic	SINK
Local I/O Points	30
Local + Remote I/O Points	30
Expandable	NO
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	21
Buffer Battery	NO
Protection Class	IP10
Min. Ambient Temperature (C)	0
Max. Ambient Temperature (C)	55
Series	MELSEC-F SERIES

Product Dimensions & Weight

Width (mm)	100
Height (mm)	90
Depth (mm)	75
Weight (kg)	0,392

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,LR,NK
UKCA	COMPLIANT

Integrated Analog Input and Pulse Output

FX3S-30MT/ES-2AD comes equipped with two 12-bit resolution analog input channels, allowing precise analog signal measurement within your system. Additionally, its pulse output function enables high-speed control of stepper motors, perfect for machine automation and motion control applications. This integration enhances versatility and efficiency, reducing space requirements and wiring complexity for seamless automation processes.

Reliable Communication and Expandability

Equipped with an RS-485 communication port and scalable up to 30 I/O points, the FX3S-30MT/ES-2AD ensures flexible integration into larger automation networks. The PLC's expansion ports support additional modules for extended functionality, supporting advanced control tasks and communication requirements in complex factory environments. Its compatibility with leading software tools ensures straightforward configuration and maintenance.

Designed for Industrial Durability

Built to operate reliably in tough industrial environments, this Mitsubishi PLC features a wide operating temperature range (0C to 55C) and resilience to vibration, shock, and humidity. The unit offers robust insulation resistance and program backup via EEPROM, safeguarding your data and operations against unexpected power interruptions. Plus, its compact, sturdy design fits easily into control panels or DIN rail systems.

FAQ's of FX3S-30MT/ES-2AD Mitsubishi PLC:

Q: How can I program the FX3S-30MT/ES-2AD Mitsubishi PLC?

A: You can program the FX3S-30MT/ES-2AD PLC using Mitsubishi's GX Works2 or GX Developer software. These platforms provide a user-friendly environment to create, modify, and troubleshoot control logic, and support communication with the PLC via compatible interfaces.

Q: What is the process for expanding the I/O capacity of this PLC?

A: Expansion is straightforward: the FX3S-30MT/ES-2AD supports modular expansion via dedicated ports. Simply connect compatible expansion modules to add more digital or analog input/output channels, allowing you to scale the system up to 30 I/O points as your application demands.

Q: Where can the FX3S-30MT/ES-2AD be mounted in industrial applications?

A: This PLC is suitable for both DIN rail and panel mounting, providing installation flexibility. Its compact body and robust design make it ideal for standard industrial control cabinets and factory automation systems.

Q: What are the benefits of the built-in analog input channels with 12-bit resolution?

A: The integrated 12-bit analog input channels enable precise analog signal acquisition for applications such as sensor monitoring and process control. This high resolution delivers improved accuracy in measurements, reducing the need for external analog-to-digital converters and saving both space and cost.

Q: How does the PLC maintain program data during power loss?

A: Program data is stored in EEPROM memory, ensuring reliable backup and retention even if the power supply is interrupted. This feature is essential for sustaining uninterrupted operations in industrial environments.

Q: What kinds of industrial sensors are compatible with the FX3S-30MT/ES-2AD inputs?

A: The FX3S-30MT/ES-2AD supports a wide range of industrial sensors, including those with 24V DC signal levels for inputs. Its flexibility in handling both digital and analog signals makes it suitable for diverse automation and monitoring tasks.
