FX3S-10MT/DSS Mitsubishi plc

FX3S-10MT/DSS Mitsubishi plc Specification

Response Time
High-speed response

Sensors Specification
Supports digital sensors

Power Supply
DC

Power Source
24V DC external supply

Input
6 digital inputs

IP Rating
IP20

Interface
RS422/RS485 supported via adapter

Operating Temperature
0 to 55C

Usage
Used for controlling various machinery and equipment

Features
Compact design, easy installation, reliable performance

Components
PLC unit, terminal block, mounting accessories

Processor Speed
High-speed processing

Output
4 transistor outputs

Product Type
Programmable Logic Controller (PLC)

Application
Industrial automation, machine control

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
Compact

Dimension (L*W*H)
90mm x 85mm x 41mm

Function
Control industrial automation processes

Color
Grey

Weight
Approx. 0.28 kg

Capacity
Program capacity: 16,000 steps

Current Rating
0.13A

Thickness
Standard

Frequency
DC only

Series
Mitsubishi FX3S

Programming Method
MELSEC programming software

Mounting Type
DIN rail or panel

Program Instruction
Basic and applied instructions

Max I/O Points
10 points (6 in/4 out)

Output Type
Transistor (Sink/Source selectable)

Expansion Capability
Supports FX3 series expansion boards

Communication Port
Expandable (RS-232C/RS485 via optional adapters)

Protection Circuit
Built-in short-circuit and overload protection

Model Number
FX3S-10MT/DSS

Humidity Range
5% to 95% (non-condensing)

Memory Backup
Battery-less memory

Programming Language
Relay ladder logic, sequential function chart

Input Type
Sink/Source selectable digital input

Storage Temperature
-25 to +70°C

About FX3S-10MT/DSS Mitsubishi plc

Products

FX3S-10MT/DSS

PLC main unit

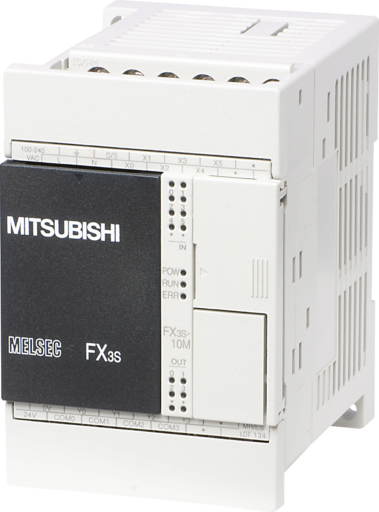

FX3S Base Unit DC24V;6 Inputs DC24V;4 Transistor Outputs (source)

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-COM PLC: Main Unit

Type	FX3S
Power Supply (V)	24
Current Type	DC
Program Memory	16K STEPS
Program Memory Unit	EEPROM
Integrated Digital Inputs	6
Integrated Digital Outputs	4
Output Type	TRANSISTOR
Output Logic	SOURCE
Local I/O Points	30
Local + Remote I/O Points	30
Expandable	NO
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	6
Buffer Battery	NO
Protection Class	IP10
Min. Ambient Temperature (C)	0
Max. Ambient Temperature (C)	55
Series	MELSEC-F SERIES

Product Dimensions & Weight

Width (mm)	60
Height (mm)	90
Depth (mm)	49
Weight (kg)	0,22

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,LR,NK
UKCA	COMPLIANT

High-Speed, Compact Automation Control

Engineered for industrial use, the FX3S-10MT/DSS provides fast response times and high-speed processing, making it ideal for controlling a variety of machines and equipment. Its compact size allows for installation in tight control panels, while maintaining robust performance and reliability for continuous operations.

Flexible Input and Output Configuration

This PLC supports 6 digital inputs and 4 transistor outputs, both with sink/source selectability. This flexibility enables integration with a wide array of digital sensors and actuators, simplifying wiring and connections for automation systems requiring adaptability and precision control.

Easy Expansion and Communication Options

Expand your automation possibilities with FX3 series expansion boards and optional adapters for RS-232C/RS485 communication. The FX3S-10MT/DSS can be easily integrated into larger systems, supporting advanced connectivity and seamless data communication across various industrial networks.
