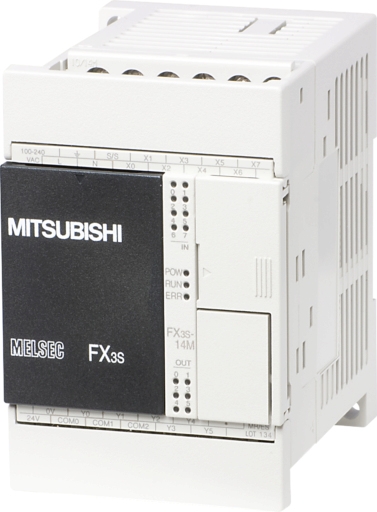

FX3S-14MT/ESS Mitsubishi plc

FX3S-14MT/ESS Mitsubishi plc Specification

Response Time
0.21 s per basic instruction

Display Type
LED Status Indicators

Usage
Industrial Automation

Interface
RS-422/USB expansion module support

Output
6 Transistor Outputs

Components
Base Unit with Power Supply, Input/Output Terminals

Power Supply
External

Processor Speed
High-Speed Processing Capability

Operating Temperature
0C to 55C

Power Source
AC Power

Sensors Specification
Compatible with standard digital sensors

IP Rating
IP10

Input
8 Digital Inputs

Features
Built-in EEPROM memory, DIN Rail or panel mounting

Resolution
Program resolution per step

Product Type
PLC

Application
Factory Automation, Machine Control

Rated Voltage
24V DC

Supply Voltage
100-240V AC

Size
Compact

Dimension (L*W*H)
90 x 86 x 70 mm

Function
Programmable Logic Controller (PLC)

Color
Grey

Weight
Approx. 0.27 kg

Capacity
2000 Steps Program Memory

Current Rating
0.3A (Output Max)

Thickness
Standard (per PLC housing)

Frequency
50/60 Hz

Series
FX3S

Relative Humidity
10% to 90% (non-condensing)

Vibration Resistance
Frequency 10 to 57 Hz, amplitude 0.075 mm

Insulation Resistance
>5 M at 500V DC

Output Type
Transistor (Sink/Source type)

Shock Resistance
147 m/s (15G), 3 times each direction

Mounting Type
DIN Rail / Surface Mount

Storage Temperature
-25C to +75C

Input Voltage Range
24V DC (21.6 to 26.4V)

Programming Language
Ladder, Instruction List

Model Number
FX3S-14MT/ESS

About FX3S-14MT/ESS Mitsubishi plc

Products

FX3S-14MT/ESS

PLC main unit

FX3S Base Unit AC100-240V;8 Inputs DC24V;6 Transistor Outputs (source)

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-COM PLC: Main Unit

Type	FX3S
Power Supply (V)	100-240
Current Type	AC
Program Memory	16K STEPS
Program Memory Unit	EEPROM
Integrated Digital Inputs	8
Integrated Digital Outputs	6
Output Type	TRANSISTOR
Output Logic	SOURCE
Local I/O Points	30
Local + Remote I/O Points	30
Expandable	NO
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	19
Buffer Battery	NO
Protection Class	IP10
Min. Ambient Temperature (C)	0
Max. Ambient Temperature (C)	55
Series	MELSEC-F SERIES

Product Dimensions & Weight

Width (mm)	60
Height (mm)	90
Depth (mm)	75
Weight (kg)	0,3

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,LR,NK
UKCA	COMPLIANT

Industrial-Grade Reliability and Performance

Designed to withstand harsh operating conditions, the FX3S-14MT/ESS delivers consistent performance with its superior insulation, shock, and vibration resistance. The PLC maintains reliability across a wide temperature range (-25C to +75C storage, 0C to 55C operating), making it suitable for various industrial applications.

Flexible Mounting and Easy Integration

Installation is straightforward thanks to its DIN rail or surface mounting options. The FX3S-14MT/ESS is compact (90 x 86 x 70 mm), lightweight (approx. 0.27 kg), and features user-friendly programming through Ladder and Instruction List languages, ensuring swift integration into existing automation setups.

Advanced Control and Connectivity

With 8 digital inputs and 6 high-speed transistor outputs, the FX3S-14MT/ESS supports fast signal processing. Expansion options via RS-422 or USB modules enable connectivity and scalability, and built-in LED indicators facilitate real-time system monitoring. This PLC streamlines automation processes and enhances machine efficiency.

FAQ's of FX3S-14MT/ESS Mitsubishi plc:

Q: How can I mount the FX3S-14MT/ESS PLC in my industrial setup?

A: The FX3S-14MT/ESS PLC is designed for both DIN rail and surface mounting. This allows flexible installation in various control panels or factory environments. Simply use the appropriate mounting kit and ensure the PLC is securely fastened to your chosen surface or DIN rail.

Q: What programming languages are supported by the FX3S-14MT/ESS?

A: You can program the FX3S-14MT/ESS PLC using Ladder Learning and Instruction List languages. These are industry-standard and user-friendly, making the device suitable for both advanced users and those new to PLC programming.

Q: When should I consider using the FX3S-14MT/ESS in factory automation?

A: The FX3S-14MT/ESS is an excellent choice whenever you need a compact, high-speed, and reliable programmable logic controller for tasks like machine control, sequence management, or integration with industrial sensors. Its robust performance and ease of installation make it ideal for small and medium-sized automation projects.

Q: Where is the FX3S-14MT/ESS typically used?

A: This PLC is commonly deployed in industrial automation environments, including building automation, machine control lines, and factory settings, especially in industries requiring compact equipment and high reliability.

Q: What process is involved in connecting sensors to the FX3S-14MT/ESS?

A: To connect sensors, use the 8 digital input terminals according to the wiring diagram in the user manual. Ensure the sensors are compatible with standard digital sensor specifications and operate within the 24V DC input range. Secure wiring guarantees stable signal transmission.

Q: How does the FX3S-14MT/ESS benefit industrial automation operations?

A: The PLC enhances automation by providing fast response times, reliable operation under harsh conditions, and flexible integration options. Features like built-in EEPROM, LED status indicators, and compact design reduce downtime, streamline troubleshooting, and ensure efficient process control.
