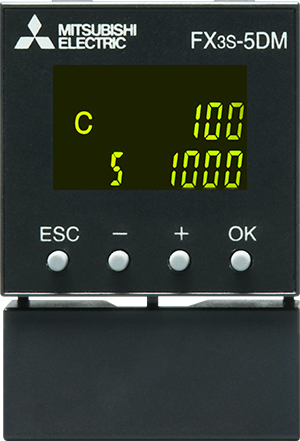

FX3S-5DM Mitsubishi plc

FX3S-5DM Mitsubishi plc Specification

Power Supply
External (from PLC unit)

Interface
Dedicated FX3S connector

Display Type
LED numeric/character display

Components
Display module, connecting interface

Output
Information display, diagnostic feedback

Features
Plug-and-play with FX3S, direct attachment, diagnostic display, error reporting

Usage
Used with Mitsubishi FX3S series PLCs

Power Source
PLC powered

Response Time
Instantaneous (display response)

Resolution
2-digit, 7-segment LED

Operating Temperature
0C to 55C

Thermal Conductivity
Standard for enclosure

Input
No direct input channels; display interface only

IP Rating
IP10 (module level)

Product Type
PLC Display Module

Application
Industrial Automation, Machine Control

Rated Voltage
5V DC

Supply Voltage
5V DC (from PLC main unit)

Size
Compact to fit FX3S unit

Dimension (L*W*H)
Approx. 50mm x 32mm x 21.4mm

Function
Display module for PLC programming and monitoring

Color
Gray & Black

Weight
Approx. 100g

Thickness
Standard, compact

Capacity
Display message only, no memory storage

Current Rating
<100mA

Frequency
N/A (Display module, non-frequency device)

Compatibility
FX3S PLC Series only

Mounting Type
Direct mount to FX3S main unit

Environmental Protection
Indoor use only

Communication Method
Parallel via dedicated connector

Hazardous Substance Compliance
RoHS compliant

Power Consumption
Approx. 0.5W

Lifecycle Expectancy
>30,000 display hours

Display Characters
2-digit numeric

Material
High-strength ABS plastic housing

Storage Conditions
-25°C to 75°C not condensing

About FX3S-5DM Mitsubishi plc

Products

FX3S-5DM

Other options

PLC, FX3S Display Unit

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-COM PLC: Other Option

Series	MELSEC-F SERIES
Type	DISPLAY MODULE
Compatible Device	FX3S

Product Dimensions & Weight

Width (mm)	35
Height (mm)	51
Depth (mm)	12
Weight (kg)	0,02

Conformity

CE	COMPLIANT
UKCA	COMPLIANT

Simple Direct Mounting

The FX3S-5DM display module is engineered for direct attachment to the FX3S main unit using a dedicated parallel connector. Its compact design and standardized size allow for quick, tool-free installation directly on the compatible PLC series, ensuring minimum setup time and reliable interface connection.

Instant Numeric Display for Diagnostics

Featuring a clear, 2-digit, 7-segment LED display, this module instantly communicates essential information, including system status, diagnostic codes, and monitoring data. With instantaneous response time, users can review real-time feedback for critical automation and control tasks without delay.

Robust and Compliant Construction

Built with high-strength ABS plastic, the FX3S-5DM is designed for longevity and durability, withstanding operating temperatures from 0C to 55C and storage down to -25C. Its RoHS compliance and IP10 module-level rating ensure safe, eco-friendly operation in indoor industrial environments.

FAQ's of FX3S-5DM Mitsubishi plc:

Q: How is the FX3S-5DM display module installed onto a PLC unit?

A: The FX3S-5DM is directly mounted to the FX3S main unit using its dedicated parallel connector, allowing for effortless plug-and-play installation without additional wiring or tools.

Q: What information does the FX3S-5DM display module provide during operation?

A: This module displays 2-digit numeric information, primarily used for status indication, error codes, and diagnostics, supporting monitoring of FX3S PLC-controlled processes.

Q: When should I use the FX3S-5DM instead of other display modules?

A: The FX3S-5DM is specifically designed and compatible only with Mitsubishi FX3S series PLCs, making it ideal when seamless integration and instant diagnostic feedback are needed in FX3S automation setups.

Q: Where is it best to use the FX3S-5DM display module?

A: The module is suitable for indoor environments focused on industrial automation and machine control, where operators require clear, immediate display of PLC data.

Q: What is the process for powering the FX3S-5DM display module?

A: Power is supplied externally, sourced directly from the FX3S PLC main unit at 5V DC, ensuring consistent and reliable operation without the need for a separate power source.

Q: How does using the FX3S-5DM benefit industrial operations?

A: Employing the FX3S-5DM module provides operators with rapid, clear diagnostic and status feedback, helping to minimize downtime and support proactive system maintenance in real time.

Q: What are the usage limitations of this display module?

A: The FX3S-5DM is intended for information display only and does not support direct input, memory storage, or outdoor applications. It must be used exclusively with FX3S PLCs and within specified environmental conditions.
