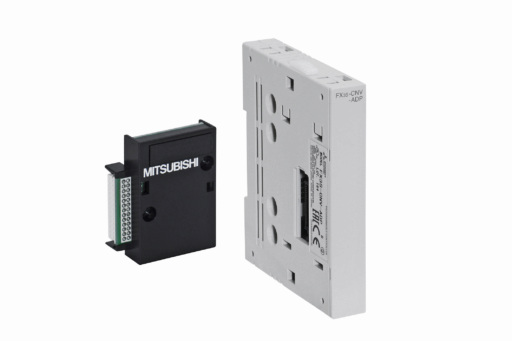

FX3S-CNV-ADP Mitsubishi PLC

FX3S-CNV-ADP Mitsubishi PLC Specification

IP Rating
IP10 (when installed in control panel)

Input
No direct input; used for adapter conversion

Power Supply
Powered via PLC main base unit

Display Type
No display, LED indicators only

Components
Main unit, mounting screws, manual

Operating Temperature
0 to 55 °C

Usage
For connecting FX3U/FX3UC special adapters to FX3S PLC series

Output
No direct output; enables adapter connectivity

Features
Easy DIN rail mounting, plug-in connection, reliable signal transmission

Power Source
From PLC base unit

Interface
Dedicated FX3U-ADP port

Product Type
Communication Adapter Module

Application
PLC I/O expansion and interface communication

Rated Voltage
24V DC

Supply Voltage
24V DC (Through FX3S base unit)

Size
Compact

Dimension (L*W*H)
Approx. 92 x 35 x 90 mm (including projections)

Function
Adapter module for communication/interface expansion between FX3S base units and FX3U-ADP special adapters

Color
Grey

Weight
Approx. 0.08 kg

Capacity
Supports connection of up to 1 FX3U-ADP module

Current Rating
Approx. 0.1A (from base unit)

Thickness
Approximately 35 mm

Mounting Method
DIN-rail or panel mounting

Vibration Resistance
10-57 Hz, 0.075 mm amplitude; 57-150 Hz, 9.8 m/s² acceleration

Storage Temperature
-25 to 75 °C

Connector Type
FX3U-ADP-compatible plug

Shock Resistance
147 m/s², 3 times each in 3 axes

Humidity Range
5 to 95% RH (non-condensing)

Compatible PLC Series
Mitsubishi FX3S series

Material
Flame retardant plastic housing

FX3S-CNV-ADP Mitsubishi PLC About

Products

FX3S-CNV-ADP

Other options

FX3S ADP Adaptor for FX3U ADP Modules

TECHNICAL INFORMATION
ADDITIONAL INFORMATION
ENVIRONMENTAL
DOWNLOADS

FA-COM PLC: Other Option

Series	MELSEC-F SERIES
Type	CONVERSION ADAPTER
Compatible Device	FX3S

Product Dimensions & Weight

Width (mm)	14,6
Height (mm)	90
Depth (mm)	74
Weight (kg)	0,1

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,LR,NK
UKCA	COMPLIANT

Effortless PLC System Expansion

The FX3S-CNV-ADP adapter module simplifies the connection process for FX3U/FX3UC special adapters to the FX3S PLC series. With straightforward plug-in connectors and user-friendly DIN-rail or panel mounting, it ensures quick installation and minimal system downtime, making it perfect for industrial environments needing agile system upgrades.

Engineered for Reliability and Safety

Constructed from flame-retardant plastic, the FX3S-CNV-ADP offers exceptional resistance to vibration, shock, and harsh environmental factors. Its operational specifications-from broad temperature and humidity tolerance to IP10 protection when installed in control panels-guarantee stable performance and safety, even in demanding automation applications.

FAQ's of FX3S-CNV-ADP Mitsubishi PLC:

Q: How is the FX3S-CNV-ADP adapter mounted in a control panel or system?

A: You can mount the FX3S-CNV-ADP either on a DIN rail or directly onto a panel using the provided mounting screws. Its compact design and integrated mounting features enable straightforward and secure installation in diverse industrial control setups.

Q: What is the primary function of the FX3S-CNV-ADP in Mitsubishi PLC systems?

A: The FX3S-CNV-ADP acts as a communication and interface adapter, allowing FX3U-ADP-compatible modules to connect seamlessly with the FX3S PLC base unit. This bridges communication and facilitates system expansion, supporting various special adapter modules within a compact solution.

Q: When is it necessary to use the FX3S-CNV-ADP module in a PLC configuration?

A: Use the FX3S-CNV-ADP when you need to interface or expand your FX3S series PLC with FX3U/FX3UC special adapters. It becomes essential for I/O expansion, analog or digital input/output interfacing, and enabling additional communication or functional options.

Q: Where should the FX3S-CNV-ADP be installed for optimal performance?

A: For optimal performance, install the adapter inside a control panel to maintain the IP10 rating and ensure environmental protection. Proper placement also helps meet specified humidity and temperature ranges, prolonging module lifespan and reliability.

Q: What advantages does the FX3S-CNV-ADP provide for industrial automation?

A: The main benefits include easy and secure expansion of PLC system capabilities, reliable signal transmission, robust protection against environmental stress, and straightforward integration with other Mitsubishi automation components, boosting overall operational flexibility.

Q: How is power supplied to the FX3S-CNV-ADP module during operation?

A: The FX3S-CNV-ADP draws its power directly from the FX3S PLC main base unit via the dedicated connector. There is no need for a separate power supply, simplifying the wiring process and reducing installation complexity.

Q: What is the process for connecting an FX3U-ADP special adapter using this module?

A: Begin by mounting the FX3S-CNV-ADP to your chosen location. Plug the FX3U-ADP module into the dedicated interface port on the adapter. Ensure secure connections and verify power via the LED indicators. Refer to the included manual for step-by-step guidance during installation.
